Up to 4,000 per hour
Feed, fold, insert, and seal up to 4,000 envelopes per hour — the fastest of the FPi line — with load-on-the-fly feeders for continuous, uninterrupted production.
Authorized Dealer

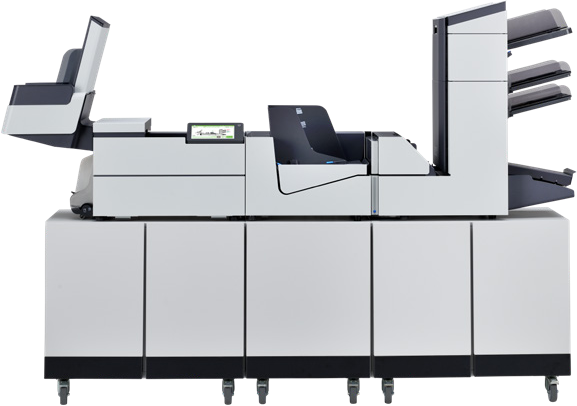

FP FPi 5700.
The flagship folder inserter for high-security, business-critical mailrooms — load your documents and envelopes, press start, and the FPi 5700 feeds, folds, inserts, and seals up to 4,000 envelopes per hour. Up to 7 feed stations and knife-fold technology handle the biggest jobs, document-reading technology keeps every run secure, and a 7" colour touchscreen makes it easy to run — all backed by Automation One support from selection through install.
4,000envelopes per hour
7feed stations (fully configurable)
10sheets folded at once (knife fold)
7"colour glass touchscreen
Overview
Discover what your mailroom has been missing.
The FPi 5700 turns any mail center into a strategic business asset, providing a platform for securely processing your business-critical mailings. This fully customizable folder inserter feeds, folds, inserts, and seals up to 4,000 envelopes per hour, and accumulates, collates, and aligns documents before folding so you can mail differing documents in the same envelope. Load the documents, press start, and come back to finished mail.
Robust security features and document-reading technologies help you overcome the challenge of protecting sensitive documents — making the FPi 5700 a great fit for healthcare, law firms, education, collections, and government offices. Smart Feeders offer tray notifications and linking, while double document detection measures the thickness and length of media in each feeder so the right documents land in the right envelope every time — all backed by local Automation One setup, supplies, and support.
Features
Powerful productivity, error-free processing.
The FPi 5700 pairs up to seven customizable Smart Feeders and quiet knife-fold technology with document-reading security, accumulation before folding, and 50-job memory — the flagship folding-inserting platform for high-security, business-critical mail.
Up to 7 feed stations
Configure up to seven Smart Feeders with feeder swap, linking, and cascading — plus optional MaxiFeeder and VersaFeeder — to fit any job and adapt to a changing workload.
Built for document security
Optional 1D barcode (BCR), 2D barcode (Data Matrix/QR), and OMR reading verify document integrity — ideal for healthcare, law, education, and government mail.
Double feed detection
Electro-mechanical detectors at each feed tray, plus a thickness detector before inserting, ensure the correct documents land in the correct envelope with no double-feeds.
Knife fold, up to 10 sheets
Powerful, quiet knife-fold technology folds up to 10 sheets at once (8 for C or Z) with five fold types — C, Z, V, Double-V, and No-Fold — plus a short-fold option.
Scale to your workload
Add MaxiFeeders (1,200 sheets each), a VersaFeeder (500 reply envelopes), a 500-envelope vertical stacker, or FlexStream software as your mailings grow.
Why the FPi 5700
Pair it with a PostBase meter.
Folder inserters and postage meters are the perfect complement to one another. Interface the FPi 5700 with a PostBase 130 Dynamic meter and printed paper becomes folded, stuffed, sealed, weighed, metered, and stacked mail with little intervention — with postal discounts over stamps and a complete, hands-off workflow. Add a custom console for ergonomic support and storage. Automation One helps you choose, install, and support the right combination for your volume.
- Easy to use — load documents, press start, then grab a coffee while it runs.
- Saves time — processes about ten times faster than folding and stuffing by hand.
- Saves money — automating the process cuts operating costs and labour.
- Creative processing — handles a wide variety of paper textures, sizes, and fold types.
- Complete solution — pair with a PostBase meter to fold, insert, seal, and meter in one flow.
Specifications
FP FPi 5700 technical highlights.
Key published specifications for the FPi 5700 folder inserter. Automation One can confirm configuration, media compatibility, options, and supplies for your deployment.
TypeFlagship high-security folder inserter (feed, fold, insert, seal)
Processing SpeedUp to 4,000 envelopes per hour
Feeder StationsUp to 7 (programmable Smart Feeders)
Fold TypesC, Z, V, Double-V, No-Fold, and Short Fold
Folding CapacityUp to 10 sheets (single) or 8 sheets (C or Z), 20 lb. paper
Job Memory50 programmable jobs; automatic job setup in ~30 seconds
Display7" full-colour glass touchscreen
SecurityDouble feed detection at each tray; thickness detector before inserting
Standard Feeder Capacity325 documents per feeder (high-capacity feeder 725)
MaxiFeeder / VersaFeeder1,200 sheets / 325 reply envelopes; VersaFeeder 500 reply envelopes
Envelope Hopper325 envelopes (load-on-the-fly)
Exit CapacityUp to 500 finished envelopes (vertical stacker)
Document Size3.5"–14" L x 5.1"–9.9" W (booklets to 2.0 mm)
Envelope Size3.5"–6.38" H x 6.3"–9.7" W
Dimensions16.5" W x 58.3" L x 31.5" H (approx.)
Weight175–223 lbs. (by configuration)
Noise<68 dB (ISO 11202)
Reading Options1D barcode (BCR), 2D barcode (Data Matrix/QR), OMR
OptionsMaxiFeeder & VersaFeeder; vertical stacker or side-exit catch tray; FlexStream software; PostBase 130 Dynamic interface; custom consoles
Specifications from the FP Mailing Solutions Canada FPi 5700 brochure and can vary by configuration and media.
