Up to 4,300 per hour
Feed, fold, insert, and seal up to 4,300 letters per hour with matched feeder and exit capacities, plus load-on-the-fly feeders for continuous, uninterrupted production.
Authorized Dealer

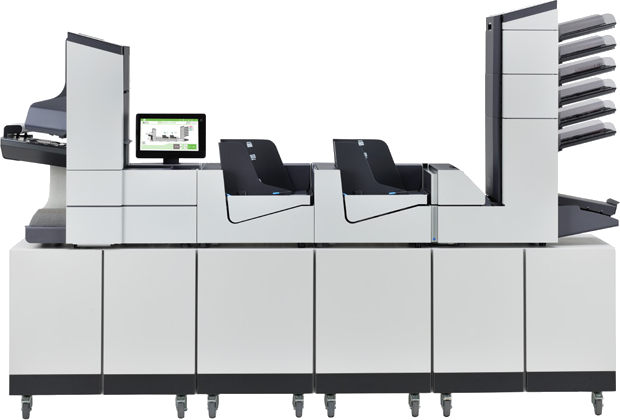

FP FPi 6700.
The high-volume workhorse for complex, business-critical mailrooms — load your documents and envelopes, press start, and the FPi 6700 feeds, folds, inserts, and seals up to 4,300 letters per hour. Up to 8 fully configurable feed stations, knife-fold technology, dual high-capacity exits, and Document Intelligence keep the biggest jobs running securely, and a 10" colour glass touchscreen makes it easy to run — all backed by Automation One support from selection through install.
4,300letters per hour
8feed stations (fully configurable)
10sheets folded at once (knife fold)
10"colour glass touchscreen
Overview
Discover what your mailroom has been missing.
The FPi 6700 raises the bar in complicated mailroom processes with its high-volume mail capabilities. This powerful, fully customizable workhorse feeds, folds, inserts, and seals up to 4,300 letters per hour, with matched feeder and exit capacities that create a well-balanced operation flow. Two high-capacity exits hold up to 1,500 finished envelopes, and the envelope feeder loads on-the-fly for uninterrupted processing. Load the documents, press start, and come back to finished mail.
Robust security features and document-reading technologies help you overcome the challenge of protecting sensitive documents — making the FPi 6700 a great fit for healthcare, law firms, education, collections, and government offices. Smart Feeders offer tray notifications and linking, while double document detection measures the thickness and length of media in each feeder so the right documents land in the right envelope every time — all backed by local Automation One setup, supplies, and support.
Features
Powerful productivity, error-free processing.
The FPi 6700 pairs up to eight customizable Smart Feeders and quiet knife-fold technology with Document Intelligence security, accumulation before folding, dual high-capacity exits, and a large 10" touchscreen — the high-volume platform for complex, business-critical mail.
Up to 8 feed stations
Configure up to eight Smart Feeders with tray notifications, feeder swap, linking, and cascading — plus optional MaxiFeeder and VersaFeeder — to fit any job and adapt to a changing workload.
Document Intelligence Software
Optional 1D barcode (BCR), 2D barcode (Data Matrix/QR), and OMR/OCR reading verify document integrity — ideal for healthcare, law, education, and government mail.
Double feed detection
Electro-mechanical detectors at each feed tray, plus a thickness detector before inserting, ensure the correct documents land in the correct envelope with no double-feeds.
Knife fold, up to 10 sheets
Powerful, quiet knife-fold technology folds up to 10 sheets at once (8 for C or Z) with five fold types — C, Z, V, Double-V, and No-Fold — plus a short-fold option.
Dual high-capacity exits
Two high-capacity exits hold up to 1,500 finished envelopes with the horizontal conveyor — choose the right exit for the job. Add MaxiFeeder, VersaFeeder, or FlexStream software as you grow.
Why the FPi 6700
Pair it with a PostBase meter.
Folder inserters and postage meters are the perfect complement to one another. Interface the FPi 6700 with a PostBase 130 Dynamic meter and printed paper becomes folded, stuffed, sealed, weighed, metered, and stacked mail with little intervention — with postal discounts over stamps and a complete, hands-off workflow. Add a custom console for ergonomic support and storage. Automation One helps you choose, install, and support the right combination for your volume.
- Easy to use — load documents, press start, then grab a coffee while it runs.
- Saves time — processes about ten times faster than folding and stuffing by hand.
- Saves money — automating the process cuts operating costs and labour.
- Creative processing — handles a wide variety of paper textures, sizes, and fold types.
- Complete solution — pair with a PostBase meter to fold, insert, seal, and meter in one flow.
Specifications
FP FPi 6700 technical highlights.
Key published specifications for the FPi 6700 folder inserter. Automation One can confirm configuration, media compatibility, options, and supplies for your deployment.
TypeHigh-volume folder inserter (feed, fold, insert, seal)
Processing SpeedUp to 4,300 envelopes per hour
Feeder StationsUp to 8 (programmable Smart Feeders)
Fold TypesC, Z, V, Double-V, No-Fold, and Short Fold
Folding CapacityUp to 10 sheets (single) or 8 sheets (C or Z), 20 lb. paper
Multi-Sheet FeedingUp to 25 inserts
Job Memory50 programmable jobs; automatic job setup in ~30 seconds
Display10" full-colour glass touchscreen
SecurityDouble feed detection at each tray; thickness detector before inserting
Standard Feeder Capacity325 documents per feeder (high-capacity feeder 725)
MaxiFeeder / VersaFeeder1,200 sheets / 325 reply envelopes; VersaFeeder 500 reply envelopes
Envelope Hopper325 envelopes (load-on-the-fly)
Exit Capacity500 finished envelopes standard; up to 1,500 with horizontal conveyor
Document Size3.5"–14" L x 5.1"–9.9" W (booklets to 2.5 mm)
Envelope Size3.5"–6.38" H x 6.3"–9.7" W
Dimensions18.3" W x 60.75" L x 31.5" H (approx.)
Weight271 lbs.
Noise<71.9 dB (ISO 11202)
Reading Options1D barcode (BCR), 2D barcode (Data Matrix/QR), OMR/OCR
OptionsCustomizable Smart Feeders, MaxiFeeder & VersaFeeder; horizontal exit conveyor or side-exit catch tray; FlexStream software; PostBase 130 Dynamic interface; custom consoles
Specifications from the FP Mailing Solutions Canada FPi 6700 brochure and can vary by configuration and media.
