Up to 1,350 per hour
Feed, fold, insert, and seal up to 1,350 envelopes per hour — about ten times faster than by hand — with feeder linking and load-while-operating for continuous runs.
Authorized Dealer

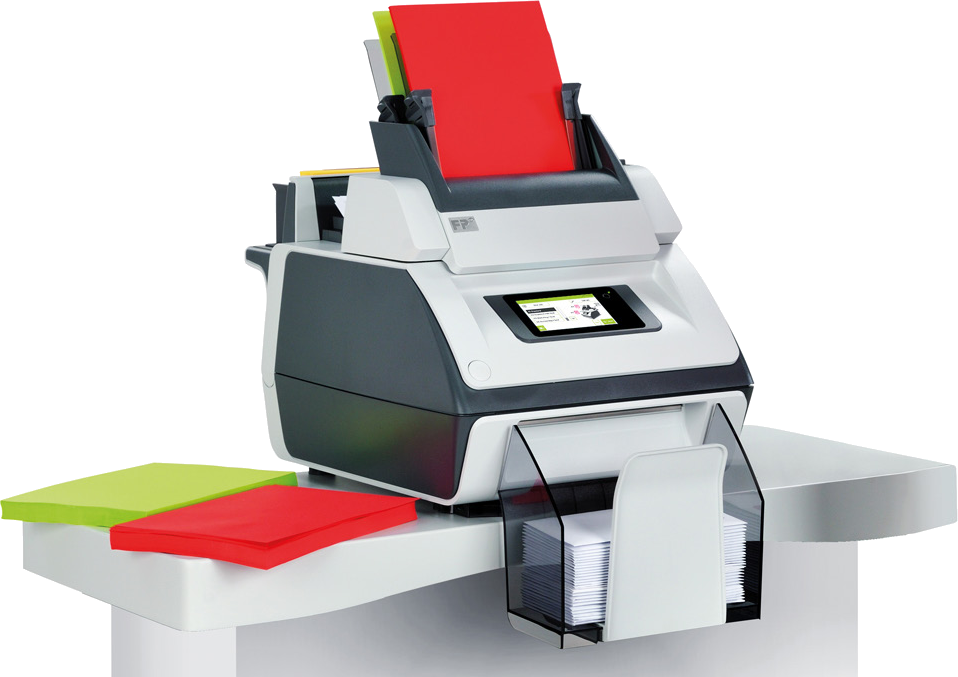

FP FPi 700.
A small and mighty folder inserter that takes the stress out of daily mail — load your paper and envelopes, press start, and the FPi 700 feeds, folds, inserts, and seals up to 1,350 letters per hour. Three Smart Feeders, double feed detection, and a 5" colour touchscreen make it easy to run, all backed by Automation One support from selection through install.
1,350sealed envelopes per hour
3+1Smart Feeders (sheets & envelopes)
15programmable stored jobs
5"colour glass touchscreen
Overview
Load. Press start. Done.
While other tasks keep you busy, the pile of letters and invoices waiting to be mailed only grows. The FPi 700 feeds paper, folds it, inserts it into an envelope, and seals it — up to 1,350 sealed envelopes per hour, roughly ten times faster than folding and stuffing by hand. Load the paper and envelopes, press start, and come back to a stack ready to mail.
This fully adaptable machine handles a variety of media — custom document and envelope sizes, perforated and pre-folded paper, large envelopes, and fold-only jobs. Its Smart Feeders provide tray notifications and linking for longer runs, and double feed detection guards against the wrong documents ending up in an envelope. For Automation One clients it is the perfect companion to a PostBase postage meter, backed by local setup, supplies, and support.
Features
Powerful productivity, error-free processing.
The FPi 700 pairs three customizable Smart Feeders and quiet folding technology with double feed detection and one-touch job recall — feeding, folding, inserting, and sealing a wide range of media in a compact, easy-to-use footprint.
Three Smart Feeders
Two sheet feeders plus a dedicated insert feeder hold 100 sheets each (200 when linked). Tray notifications and linking keep long jobs moving without stopping to reload.
Four fold types
Quiet folding technology folds up to five sheets at once in C, V, Double-V, or No-Fold (insert only) — and can create a tri-fold brochure without inserting at all.
Double feed detection
Sensors measure the thickness and length of media in each feeder, so the correct documents land in the correct envelope every time and no piece is double-fed.
Intuitive 5" touchscreen
A full-colour glass touchscreen controls every function. Store up to 15 jobs for one-touch recall and create a new job in under 30 seconds.
Versatile media handling
Process over 39 job types across custom document and envelope sizes, perforated and pre-folded paper, stapled sets, insert nesting, and large envelopes — with a clamshell design for easy access.
Why the FPi 700
Pair it with a PostBase meter.
Folder inserters and postage meters are the perfect complement to one another. The FPi 700 folds, inserts, and seals your envelopes; a PostBase meter then prints postage directly on them — with postal discounts over stamps and a complete, hands-off mailing workflow. Automation One helps you choose, install, and support the right combination for your volume.
- Easy to use — load documents, press start, then grab a coffee while it runs.
- Saves time — processes about ten times faster than folding and stuffing by hand.
- Saves money — automating the process cuts operating costs and labour.
- Creative processing — handles a wide variety of paper textures, sizes, and fold types.
- Complete solution — pair with a PostBase meter to fold, insert, seal, and meter in one flow.
Specifications
FP FPi 700 technical highlights.
Key published specifications for the FPi 700 folder inserter. Automation One can confirm configuration, media compatibility, options, and supplies for your deployment.
TypeDesktop folder inserter (feed, fold, insert, seal)
Processing SpeedUp to 1,650 envelopes/hour (1,350 with sealing)
Feeder Stations3 media feeders + 1 envelope feeder (Smart Feeders)
Fold TypesC, V, Double-V, and No-Fold (insert only)
Folding CapacityUp to 5 sheets half fold, 3 sheets letter fold (20 lb. paper)
Job Memory15 programmable stored jobs
Display5" full-colour glass touchscreen
SecurityDouble feed detection (thickness & length verification)
Sheet Feeders100 sheets each (200 when linked)
Insert Feeder100 BRE (business reply envelopes)
Envelope Hopper100 carrier envelopes
Catch Tray100 finished envelopes
Sheet Size7"–14" H x 5.6"–8.9" W
Insert Size3.5"–6.22" H x 5.6"–8.9" W
Carrier Envelope Size#10 (4.125" x 9.5") and 6" x 9.5"
Paper Weight60–120 g/m² (16–32 lb. bond)
Dimensions26" L x 17" W x 22" H (without exit tray)
Weight82 lbs.
Noise<65 dBA (ISO 11202)
OptionsTri-fold brochure creation; mailroom furniture
Specifications from the FP Mailing Solutions Canada FPi 700 brochure and can vary by configuration and media.
Explore FP Mailing Solutions
Postage meters and folder inserters to automate your outbound mail, backed by local Automation One support.
